Panama

12% Openness

Print page

Cement

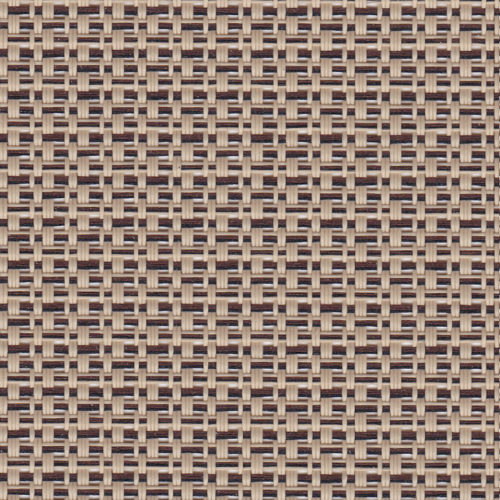

Otter

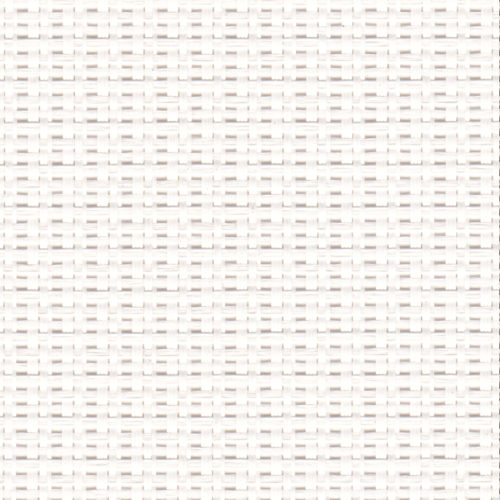

Papyrus

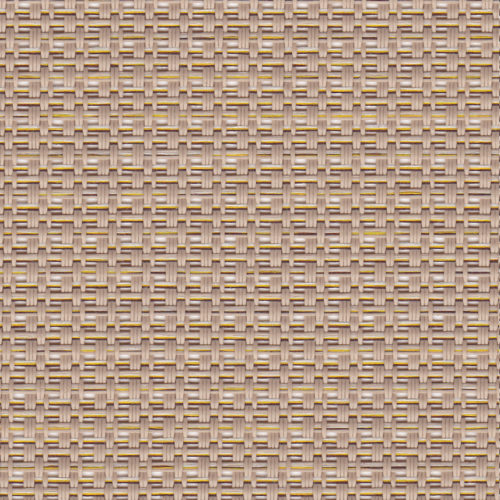

Safari

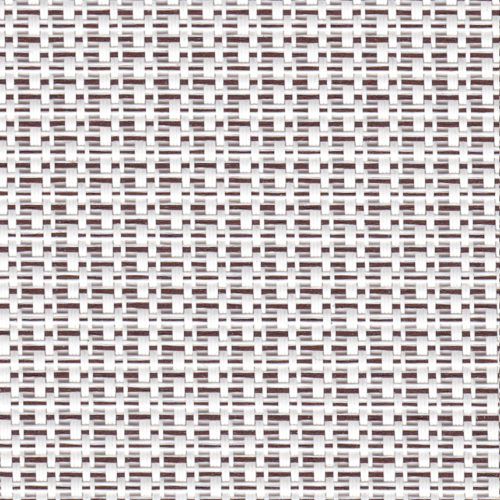

Tapioca

Specifications

Maximum Fabric/Shade Width: 114″
UV Blockage: Approximately 88%
Composition: 73% Vinyl, 27% Polyester
Fabric Weight: 9.65 oz/yd²
Fabric Thickness: 0.024″
Railroad Available: No
Printable Available: No
Fire Classification: NFPA 701 TM#1
Bacterial and Fungal Resistance: ASTM E2180, ASTM
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.

Care and Cleaning

Dust regularly with a commercial dusting wand. A hand-held vacuum with low suction or compressed air may also be used. Do not pull or stretch the fabric while handling to avoid possible damage.


Cement
Otter
Papyrus
Safari
Tapioca

Fabric Properties - Thermal

Ts (%)	Rs (%)	As (%)
26	30	44
18	25	57
32	58	10
18	36	46
26	44	30


Cement
Otter
Papyrus
Safari
Tapioca

Fabric Properties - Optical

Rv (%)	Tv (%)
37	23
32	16
65	29
43	13
51	23


Cement
Otter
Papyrus
Safari
Tapioca

Fabric & Glass

SHGC % Improvment	SHGC
42	0.28
40	0.29
46	0.26
42	0.28
44	0.27

Ts (Solar transmittance): Proportion of solar energy transmitted through the fabric. Rs (Solar reflectance): Proportion of solar radiation reflected by the fabric. As (Solar absorptance): Proportion of solar radiation absorbed by the fabric. Tv (Visible light transmittance): Total percentage of light radiation through the fabric over a wavelength of 380 to 780 nm. Rv (Visible light reflectance): Total percentage of light radiation reflected by the fabric over a wavelength of 380 to 780 nm. SHGC (Total solar factor): Solar energy which actually penetrates into a room through the blind and glazing. A low value means good thermal performance.
